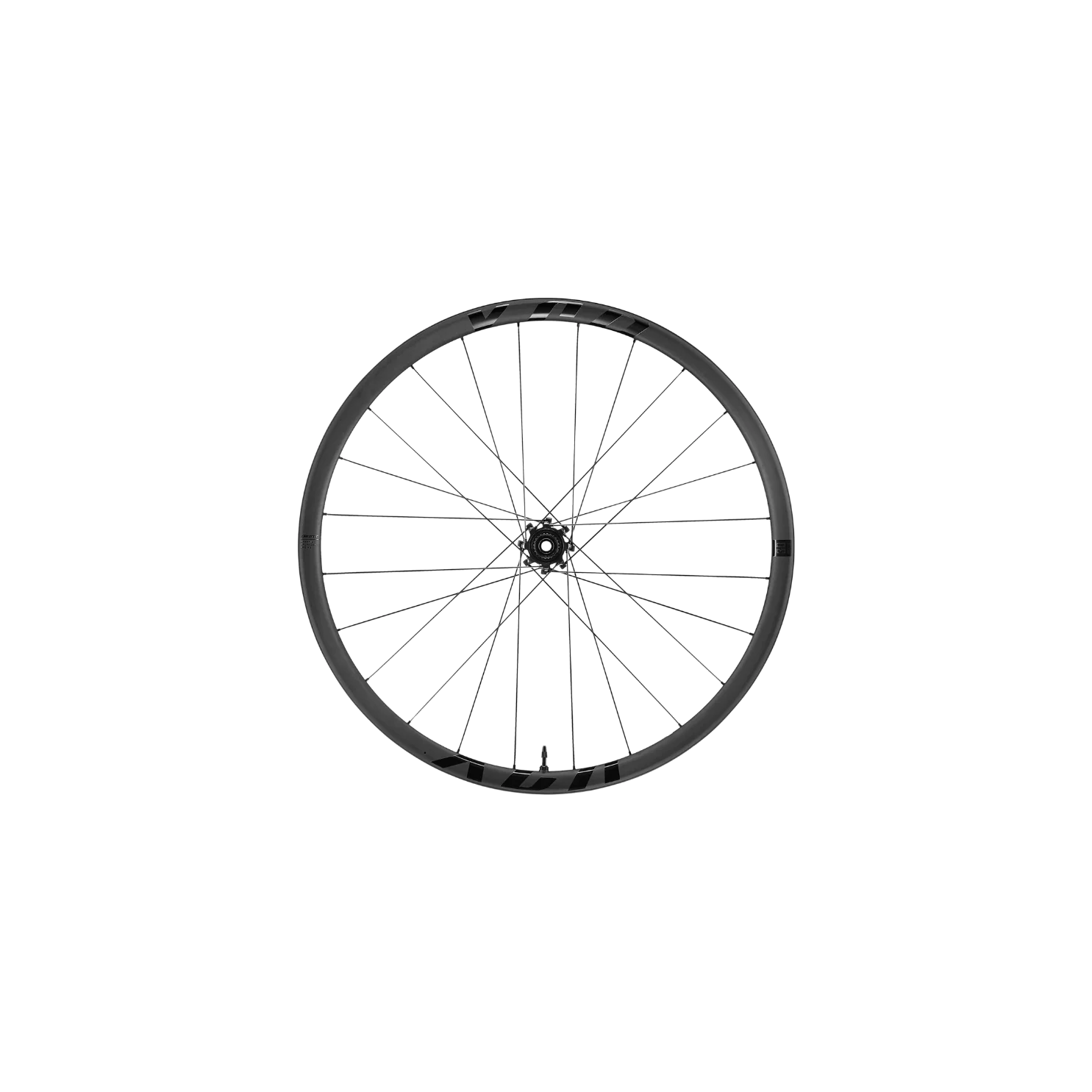

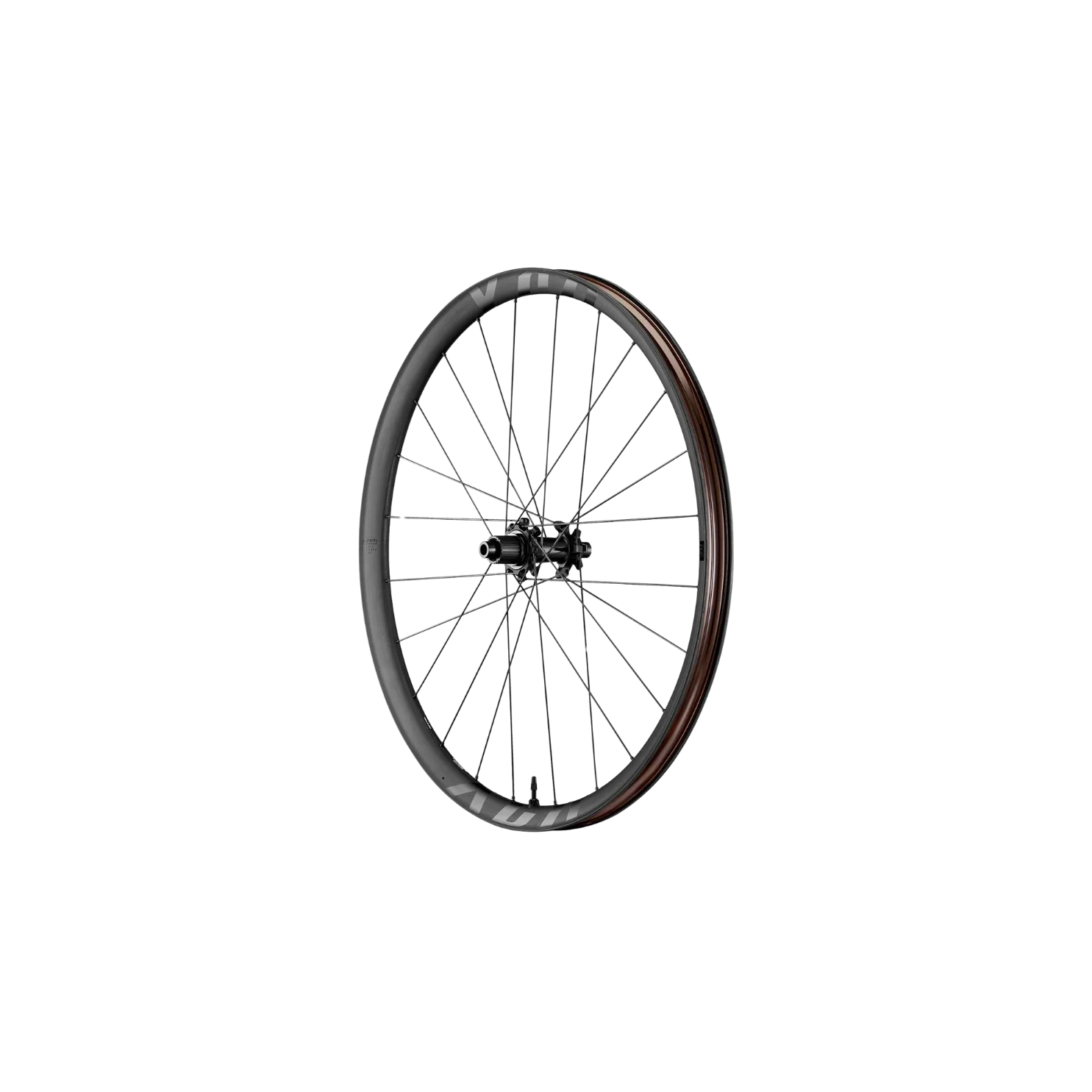

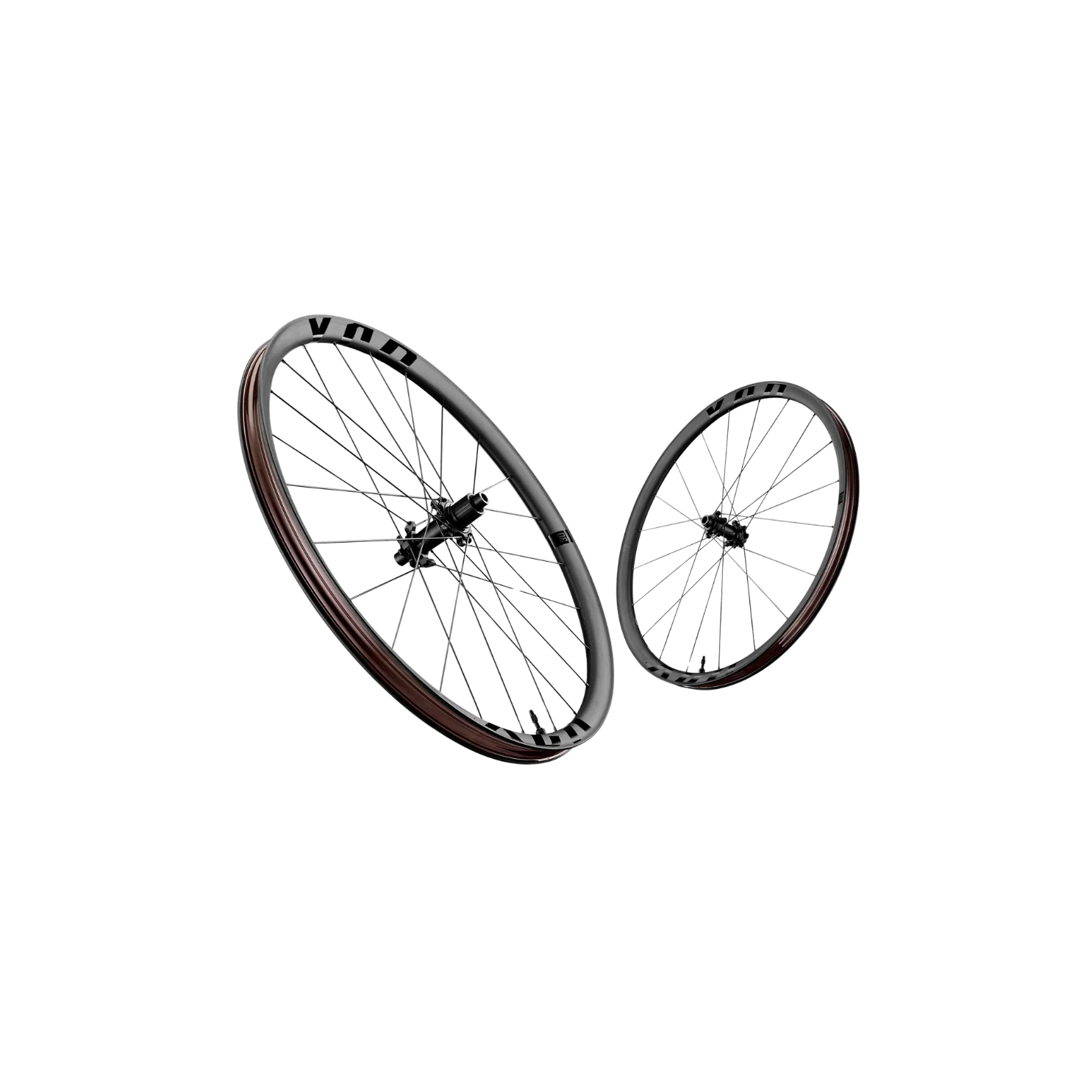

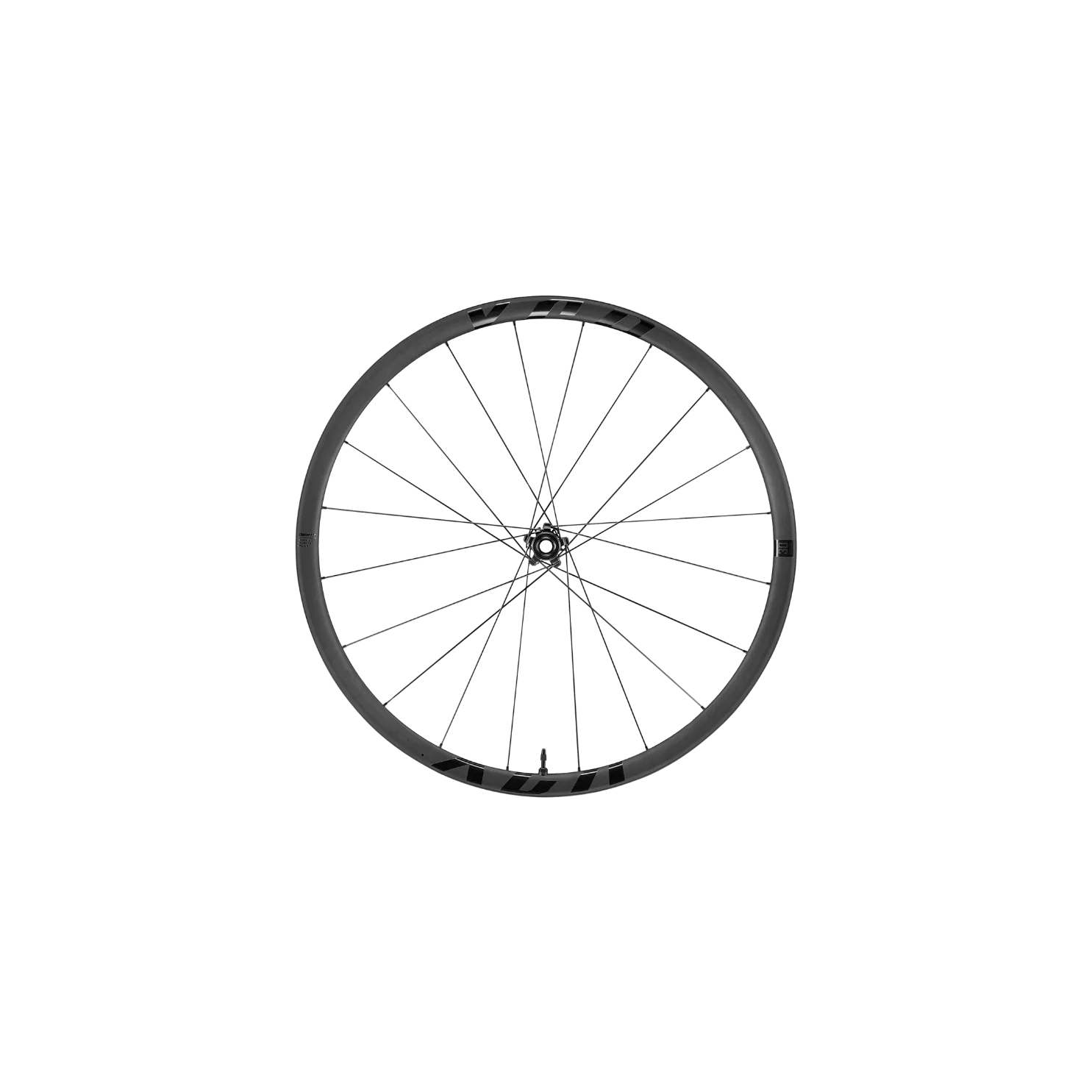

Giant XCR Disc Tubeless Wheelset
Features
Dynamic Balanced Lacing (DBL): Enlarged hub flange increases spoke bracing angles, balancing tension for superior lateral and torsional stiffness and more efficient power transfer.
High-Tensile-Strength Carbon Spokes: Six-tow carbon construction delivers up to 3× the impact resistance of standard designs while maximizing stiffness-to-weight for rapid acceleration.
Optimised Reinforced Layup: Strategic carbon placement enhances strength and stiffness while minimising weight for uncompromising race-day efficiency.
Helical-Bevel Ratchet Drive System: A 10° helical engagement ensures efficient, consistent power transfer, while the 120-tooth ratchet delivers rapid 3° engagement for immediate response and precise power delivery.
Ratchet Wave Spring: Distributes even pressure for smoother engagement and improved rolling efficiency.
Wide Guard Technology: 5mm rounded-edge rim sidewalls provide superior impact protection and reduce pinch flats.
30mm Inner Width: Supports lower tyre pressures for more traction and control.
Specifications
Material: Carbon
Rim Type: Hookless
Tubeless: Giant Tubeless System (rim tape and valve kit included)
Suggested Tyre Size: 2.2–2.6”
Rim Height: 29mm
Rim Inner Width: 30mm
ETRTO: 622x30
Front Hub: Alloy, 6-bolt
Rear Hub: Alloy, 120T Helical-Bevel Ratchet Driver, 6-bolt
Hub Compatibility: Shimano HG / MS, SRAM XD
Bearing: Sealed Cartridge
Front Axle: 110x15 Thru Axle
Rear Axle: 148x12 Thru Axle
Front Spokes: Ø2.2mm Carbon Spoke
Front Lacing: 20H, DBL, Straight Pull
Rear Spokes: Ø2.2mm Carbon Spoke
Rear Lacing: 24H, DBL, Straight Pull
Nipple Type: Alloy
Mfr Claimed Weight
Pair Weight: 1349g (Shimano MS), 1346g (SRAM XD)
Front Weight: 619g (with tape/valve)
Rear Weight: 730g (Shimano MS), 727g (SRAM XD)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Giant XCR Disc Tubeless Wheelset
Giant XCR Disc Tubeless Wheelset
Features
Dynamic Balanced Lacing (DBL): Enlarged hub flange increases spoke bracing angles, balancing tension for superior lateral and torsional stiffness and more efficient power transfer.
High-Tensile-Strength Carbon Spokes: Six-tow carbon construction delivers up to 3× the impact resistance of standard designs while maximizing stiffness-to-weight for rapid acceleration.
Optimised Reinforced Layup: Strategic carbon placement enhances strength and stiffness while minimising weight for uncompromising race-day efficiency.
Helical-Bevel Ratchet Drive System: A 10° helical engagement ensures efficient, consistent power transfer, while the 120-tooth ratchet delivers rapid 3° engagement for immediate response and precise power delivery.
Ratchet Wave Spring: Distributes even pressure for smoother engagement and improved rolling efficiency.
Wide Guard Technology: 5mm rounded-edge rim sidewalls provide superior impact protection and reduce pinch flats.
30mm Inner Width: Supports lower tyre pressures for more traction and control.
Specifications
Material: Carbon
Rim Type: Hookless
Tubeless: Giant Tubeless System (rim tape and valve kit included)
Suggested Tyre Size: 2.2–2.6”
Rim Height: 29mm
Rim Inner Width: 30mm
ETRTO: 622x30
Front Hub: Alloy, 6-bolt
Rear Hub: Alloy, 120T Helical-Bevel Ratchet Driver, 6-bolt
Hub Compatibility: Shimano HG / MS, SRAM XD
Bearing: Sealed Cartridge
Front Axle: 110x15 Thru Axle
Rear Axle: 148x12 Thru Axle
Front Spokes: Ø2.2mm Carbon Spoke
Front Lacing: 20H, DBL, Straight Pull
Rear Spokes: Ø2.2mm Carbon Spoke
Rear Lacing: 24H, DBL, Straight Pull
Nipple Type: Alloy
Mfr Claimed Weight
Pair Weight: 1349g (Shimano MS), 1346g (SRAM XD)
Front Weight: 619g (with tape/valve)
Rear Weight: 730g (Shimano MS), 727g (SRAM XD)
Original: $999.35
-65%$999.35
$349.77Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Features
Dynamic Balanced Lacing (DBL): Enlarged hub flange increases spoke bracing angles, balancing tension for superior lateral and torsional stiffness and more efficient power transfer.
High-Tensile-Strength Carbon Spokes: Six-tow carbon construction delivers up to 3× the impact resistance of standard designs while maximizing stiffness-to-weight for rapid acceleration.
Optimised Reinforced Layup: Strategic carbon placement enhances strength and stiffness while minimising weight for uncompromising race-day efficiency.
Helical-Bevel Ratchet Drive System: A 10° helical engagement ensures efficient, consistent power transfer, while the 120-tooth ratchet delivers rapid 3° engagement for immediate response and precise power delivery.
Ratchet Wave Spring: Distributes even pressure for smoother engagement and improved rolling efficiency.
Wide Guard Technology: 5mm rounded-edge rim sidewalls provide superior impact protection and reduce pinch flats.
30mm Inner Width: Supports lower tyre pressures for more traction and control.
Specifications
Material: Carbon
Rim Type: Hookless
Tubeless: Giant Tubeless System (rim tape and valve kit included)
Suggested Tyre Size: 2.2–2.6”
Rim Height: 29mm
Rim Inner Width: 30mm
ETRTO: 622x30
Front Hub: Alloy, 6-bolt
Rear Hub: Alloy, 120T Helical-Bevel Ratchet Driver, 6-bolt
Hub Compatibility: Shimano HG / MS, SRAM XD
Bearing: Sealed Cartridge
Front Axle: 110x15 Thru Axle
Rear Axle: 148x12 Thru Axle
Front Spokes: Ø2.2mm Carbon Spoke
Front Lacing: 20H, DBL, Straight Pull
Rear Spokes: Ø2.2mm Carbon Spoke
Rear Lacing: 24H, DBL, Straight Pull
Nipple Type: Alloy
Mfr Claimed Weight
Pair Weight: 1349g (Shimano MS), 1346g (SRAM XD)
Front Weight: 619g (with tape/valve)
Rear Weight: 730g (Shimano MS), 727g (SRAM XD)
