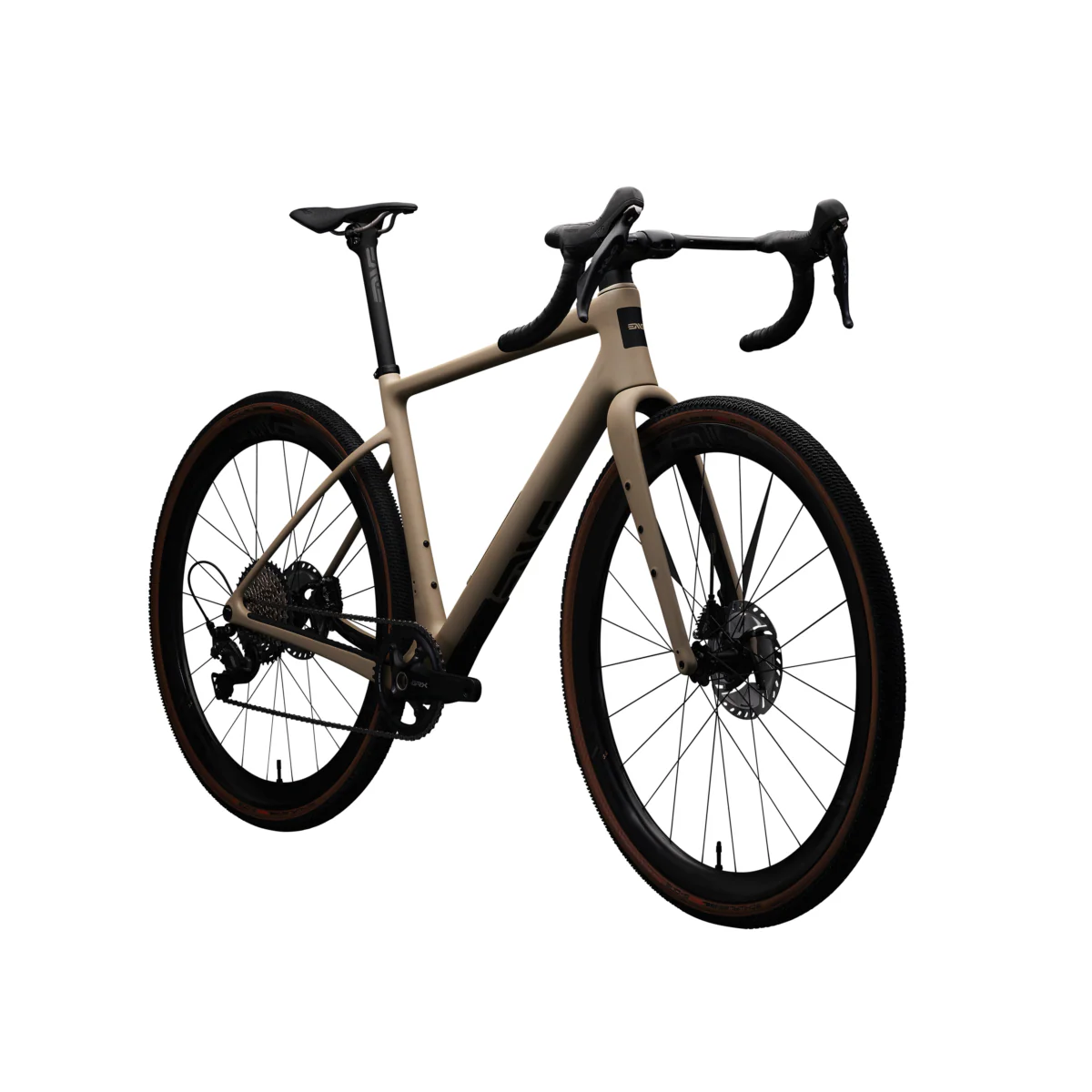

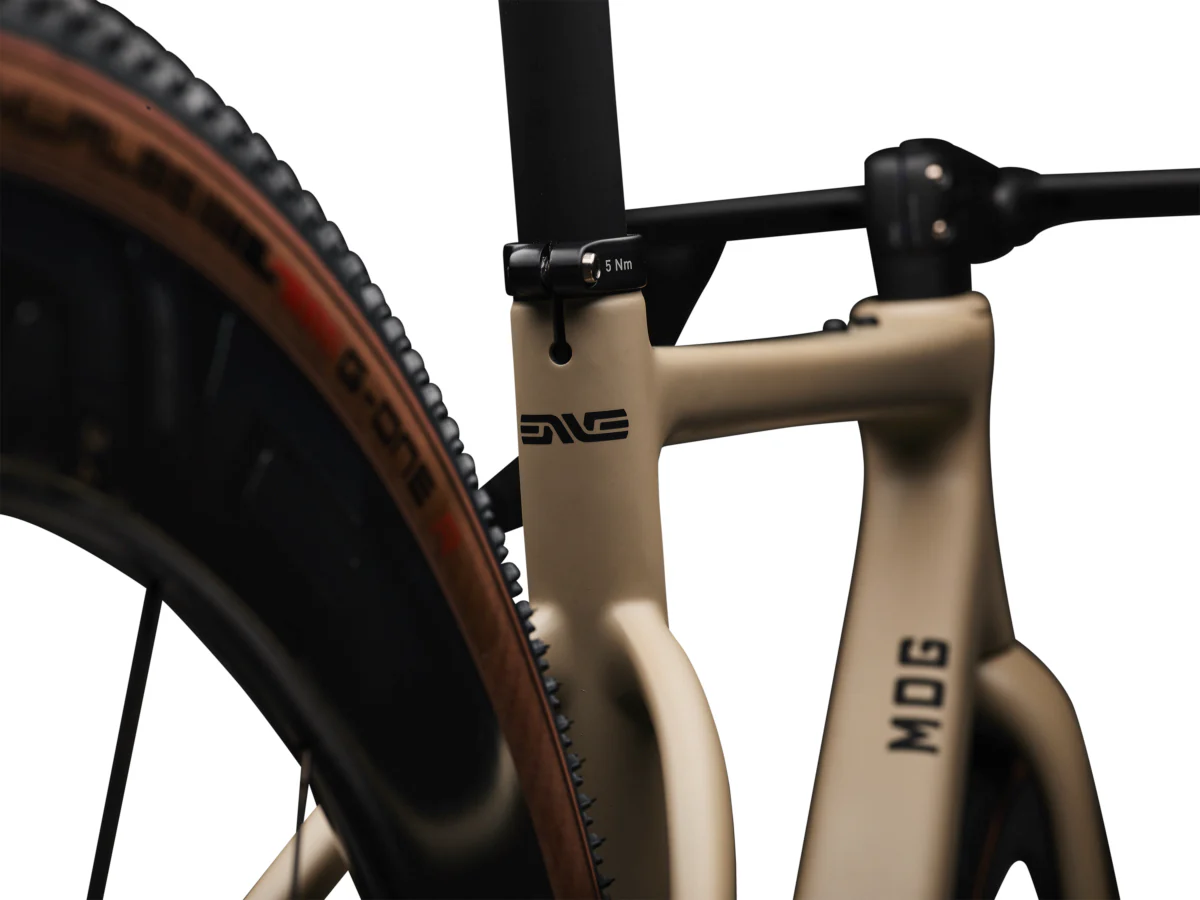

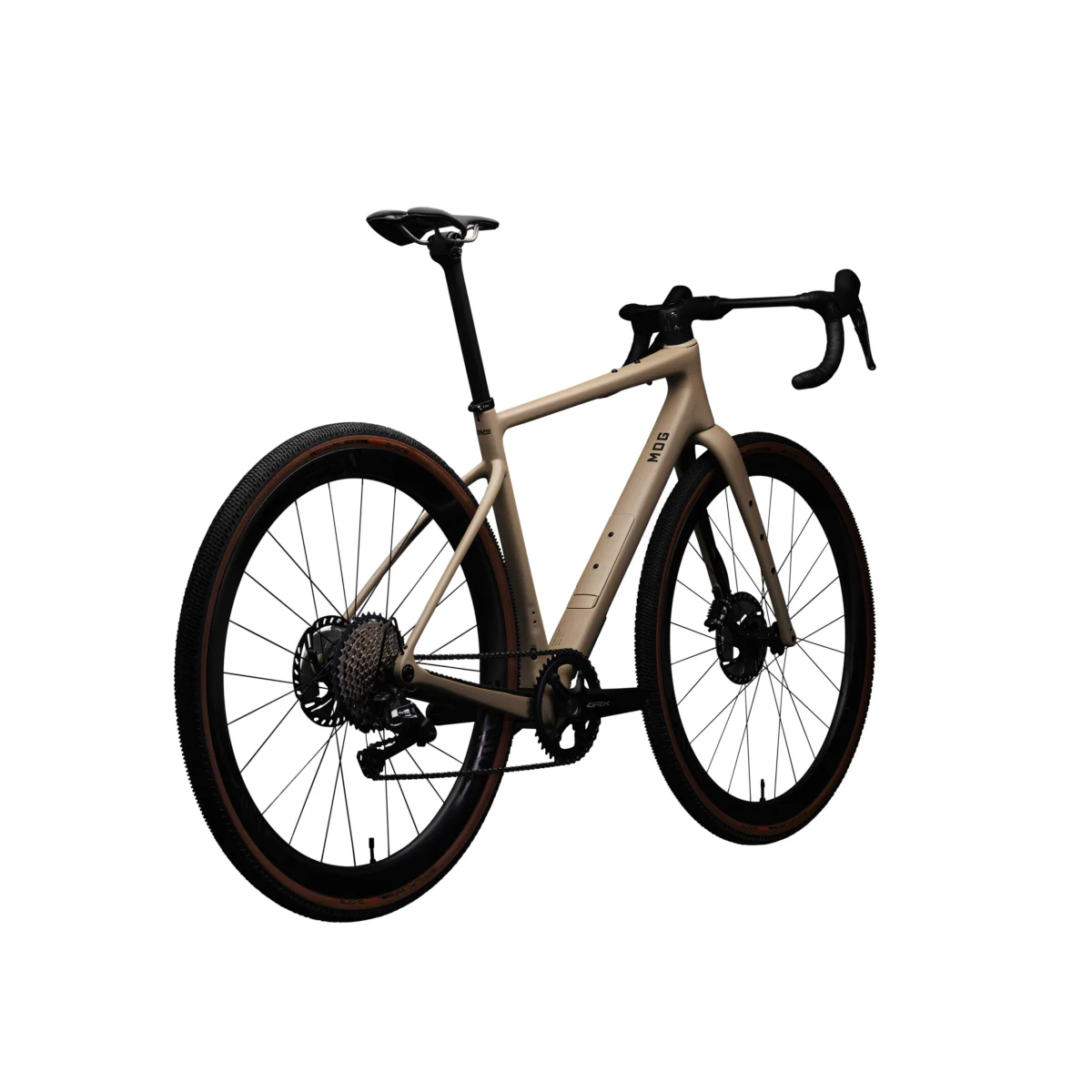

ENVE MOG Gravel Frameset - Sand
The ENVE MOG is sold as a chassis with frame, fork and headset.
The MOG embodies everything a modern gravel bike should beāpurposeābuilt, wildly capable, and ready for whatever terrain you point it toward. Its versatility starts with massive tire clearance, accommodating a 700c x 50 mm tire with room to spare for confident handling on everything from fast hardpack to rugged backcountry routes. Add in ENVEās integrated Cargo Bay, which transforms the downtubeās open space into practical ināframe storage, and you get a bike that carries your essentials without compromising ride quality or aesthetics.
Every detail reflects ENVEās commitment to engineering a gravel platform thatās as efficient on race day as it is adaptable for longāhaul exploration. Whether youāre chasing podiums, chasing horizons, or simply chasing the perfect ride, the MOG delivers a blend of speed, stability, and smart design that sets the benchmark for gravel capability.
Specifications
Frame Material: ENVE M.O.D Carbon, 12x142 thru-axle, flat-mount disc, threaded T47 BB, internal routing, fender compatible.
Fork Material: ENVE M.O.D Carbon, 12x100 thru-axle, flat-mount disc, internal routing, fender compatible.
Target Application: Gravel Racing / Riding / Exploration / Adventure.
Sizes (cm): 49, 52, 54, 56, 58, 60.
Fork Rake: 57, 55, 53.
Fork Axle to Crown: 395mm.
Frame Size / Fork Rake: 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53.
Frame Weight: 950g Ā±2% (Size 56, painted, no hardware).
Headset: ENVE Integrated IS52/IS52 internal drop-in.
Headset Bearing: 1.5" IS52 upper and lower.
Seat Post Diameter: 27.2.
BB Type: T47 inboard bearing.
Brake Mount: Flat mount.
Brake Rotor Compatibility: F: 160/180, R: 140/160 (adapters required).
Front Axle: 12x100 (Total Length: 122, TP: 1.5, TL: 15).
Rear Axle: 12x142 (Total Length: 168, TP: 1.0, TL: 14).
Minimum Tire Size: 700 x 36c.
Optimal Tire Size: 700 x 40cā44c.
Maximum Listed Tire Clearance: 700 x 50c.
Frame Routing: ENVE IN-Route internal.
Water Bottle Capacity: 3.
Top Tube Mounts: Yes.
Fender Mount Compatible: Yes.
Wheel Size: 700C (650b not recommended).
Color: Pantone 7528C (equivalent to Sand).
Mfr Claimed Weight
TBC
