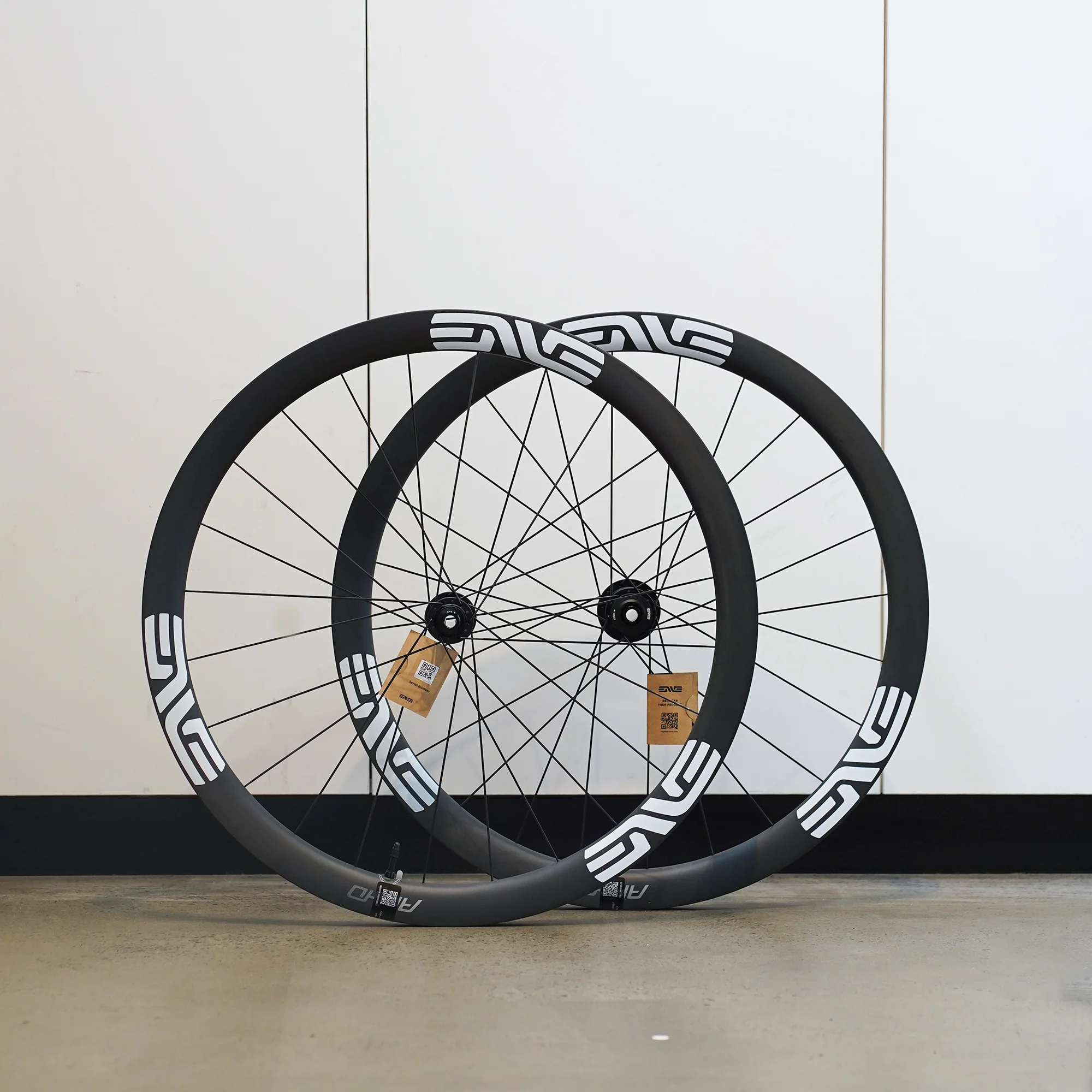

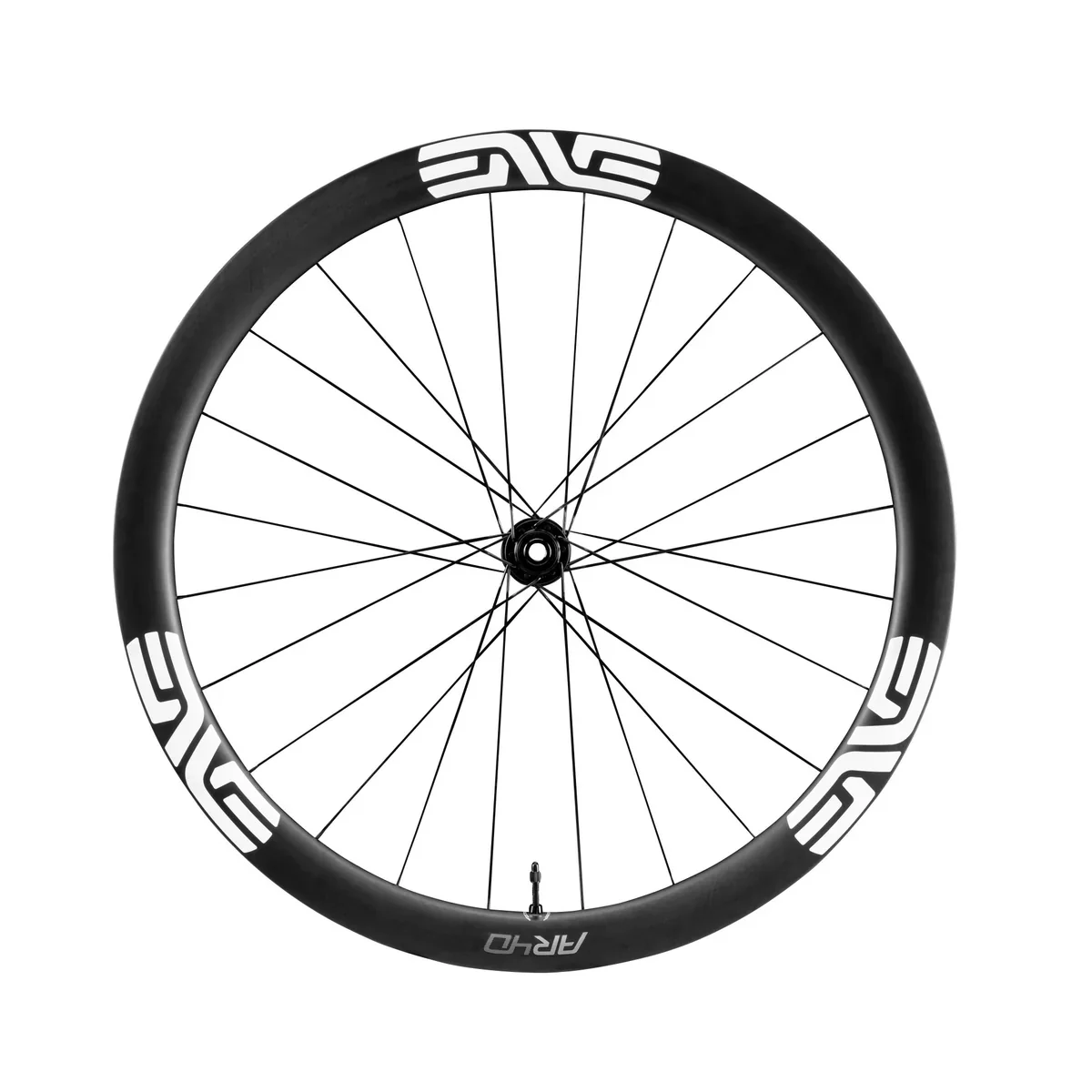

ENVE AR40 Carbon Disc Brake Wheels - White

ENVE AR40 Carbon Disc Brake Wheels - White

The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40mm rim depth front and rear with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road ride and racer looking for performance on and off-road.Ā

  • Ultimate versatility for the on and off-road rider
  • 1515g Wheelset Weight Avg. (+/- 3%)
  • Inner Rim Width: 25mm
  • Aero optimized tire size: 27mm*
  • Tested and qualified to ENVE's gravel standards
  • For Use With Tubeless Tires Only

Ā

SPEC TABLE FRONT REAR
Spokes Sapim CX-Ray J-Bend
Hub ENVE INNERDRIVE - Foundation ENVE INNERDRIVE - Foundation
Hub Spacing Front: 12x100 | Rear: 12x142
Nipples Alpina Nylock Brass
Spoke Tension 120kgf
Brake Type Centerlock
SPEC TABLE FRONT REAR
Effective Rim Diameter (ERD) 579mm (+/- 3mm)
Internal Rim Width 25mm
Sidewall Width 3.6mm
Pinch Flat Technology Wide Hookless Bead
Hole Count 24h
Depth 40mm
Tubeless Tape Width 29mm
Tubeless Valve Length 61mm 61mm
Spoke Tension 120kgf
Brake Type Centerlock
Spacing Front: 12x100 | Rear: 12x142
Wheelset Weight 1515g (Includes Tape and Valves - HG Freehub)
Select Size
From $863.72
ENVE AR40 Carbon Disc Brake Wheels - Whiteā€”
$863.72

Product Information

Shipping & Returns

Description

The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40mm rim depth front and rear with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road ride and racer looking for performance on and off-road.Ā

  • Ultimate versatility for the on and off-road rider
  • 1515g Wheelset Weight Avg. (+/- 3%)
  • Inner Rim Width: 25mm
  • Aero optimized tire size: 27mm*
  • Tested and qualified to ENVE's gravel standards
  • For Use With Tubeless Tires Only

Ā

SPEC TABLE FRONT REAR
Spokes Sapim CX-Ray J-Bend
Hub ENVE INNERDRIVE - Foundation ENVE INNERDRIVE - Foundation
Hub Spacing Front: 12x100 | Rear: 12x142
Nipples Alpina Nylock Brass
Spoke Tension 120kgf
Brake Type Centerlock
SPEC TABLE FRONT REAR
Effective Rim Diameter (ERD) 579mm (+/- 3mm)
Internal Rim Width 25mm
Sidewall Width 3.6mm
Pinch Flat Technology Wide Hookless Bead
Hole Count 24h
Depth 40mm
Tubeless Tape Width 29mm
Tubeless Valve Length 61mm 61mm
Spoke Tension 120kgf
Brake Type Centerlock
Spacing Front: 12x100 | Rear: 12x142
Wheelset Weight 1515g (Includes Tape and Valves - HG Freehub)
